How to Fit a Chinese Diesel Heater to a VW T2 Campervan
How I installed a cheap Chinese diesel heater in my VW T2 campervan Jenny — step-by-step guide, what I'd do differently, and how to integrate it with leisure battery and solar.
The Short Version
- The heater: a cheap 5kW Chinese diesel heater kit →, fitted under the rock and roll bed. Mine has run for 2+ years without a problem.
- The fuel: a slim upright tank tucked behind the driver's seat.
- The annoying bit: the fuel pump ticks. Insulate it before your first night away.
- The non-negotiable: two carbon monoxide alarms →, with fresh batteries, every trip.
Jump to: Planning · Step-by-step · What I'd do differently · The kit I used · FAQs
Planning the Installation
Before I picked up a single tool, I spent a good amount of time planning where everything would go. In a T2, space is at a premium, so you need to think carefully.
Heater unit: Under the rock and roll bed was the obvious choice. There's decent space under there, it's out of the way, and the hot air can vent up into the living area nicely.
Diesel tank: I went with a thin upright tank mounted behind the driver's seat. The kit comes with a small tank, but I wanted something that tucked away neatly and held a decent amount of fuel. A slim upright tank fits perfectly in that dead space behind the seat.

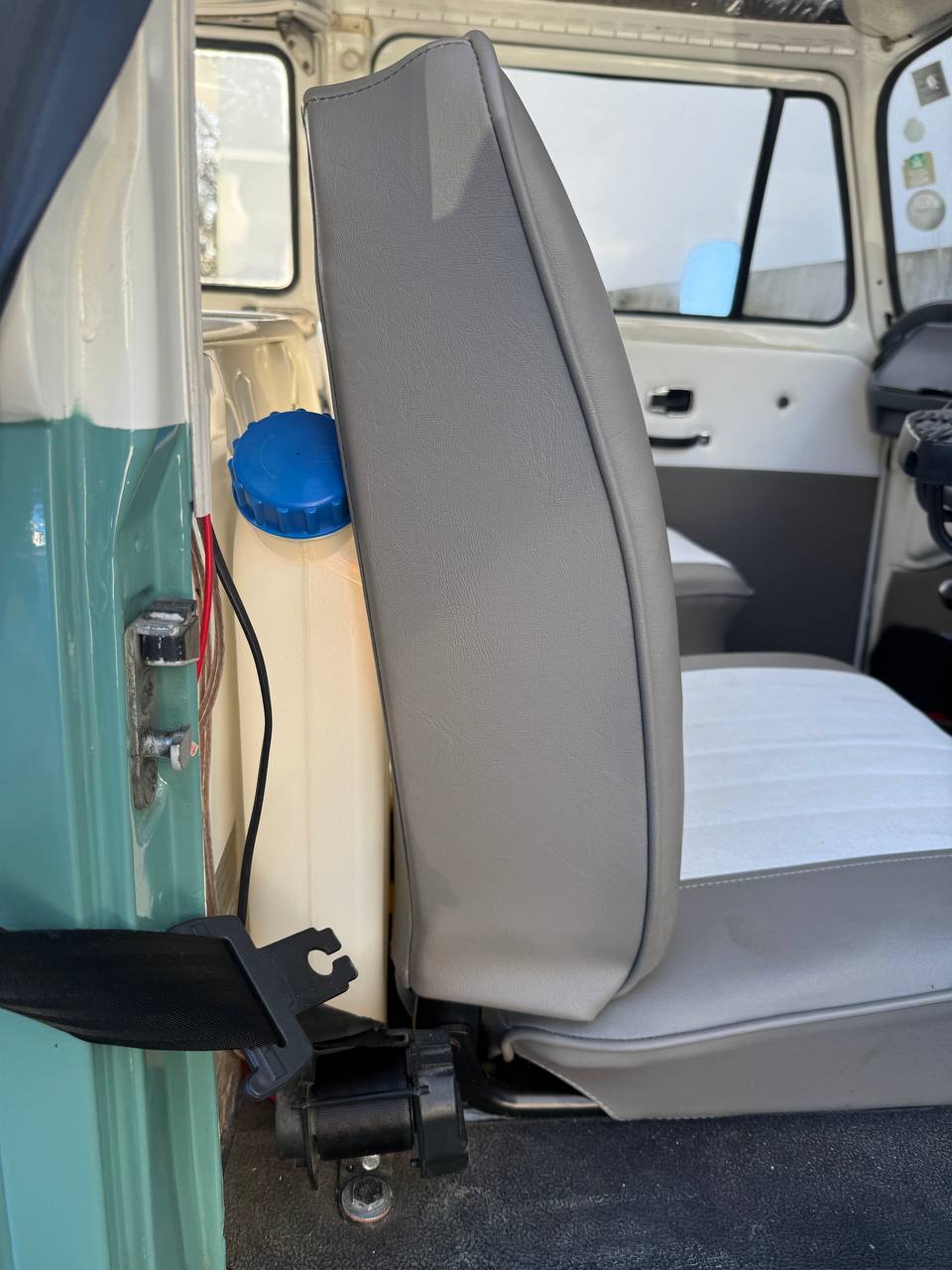

The slim upright diesel tank tucked in behind the driver's seat — neat and out of the way.
Exhaust and air intake: This is important. You need holes in the floor for both the exhaust outlet and the air intake. I also bought a longer pipe for the air intake so I could keep the exhaust and intake as far apart from each other as possible. You do NOT want exhaust fumes being sucked back into the air intake. Spend the extra few quid on a longer intake pipe — it's worth it.
Air intake pipe routed well away from the exhaust.

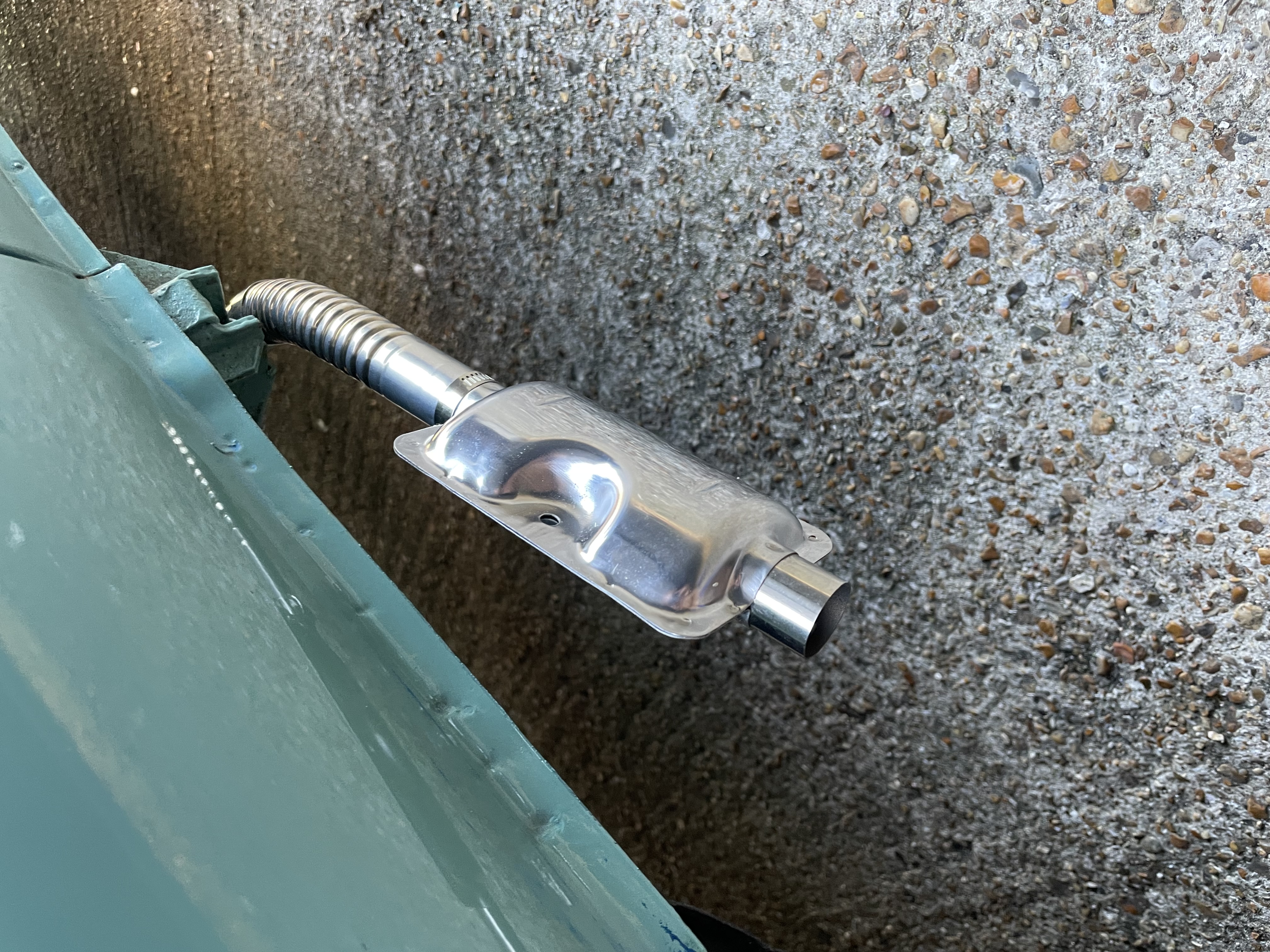

Exhaust outlet on the underside — keep this well separated from the intake.
Step-by-Step: How I Fitted It
⚠️ Reminder: This is how I did it. I'm not telling you how you should do it. Consult a professional. Seriously.
Step 1: Measure and Mark
I removed the rock and roll bed and measured everything up properly underneath. You need to know exactly where the heater mounting plate will sit and where the exhaust and intake holes need to go through the floor.
Take your time with this. Measure twice, cut once — because you're about to cut big holes in the floor of your beloved campervan, and there's no undoing that.
Step 2: Cut the Holes
This was the bit that made me most nervous. Cutting holes in Jenny's floor felt properly wrong. But it has to be done.
Buy the right sized hole saw. Don't try to bodge it with a jigsaw or something too small. Get the correct diameter hole saw for your exhaust and intake pipes. It makes a clean job and saves you a world of hassle trying to seal up gaps later.

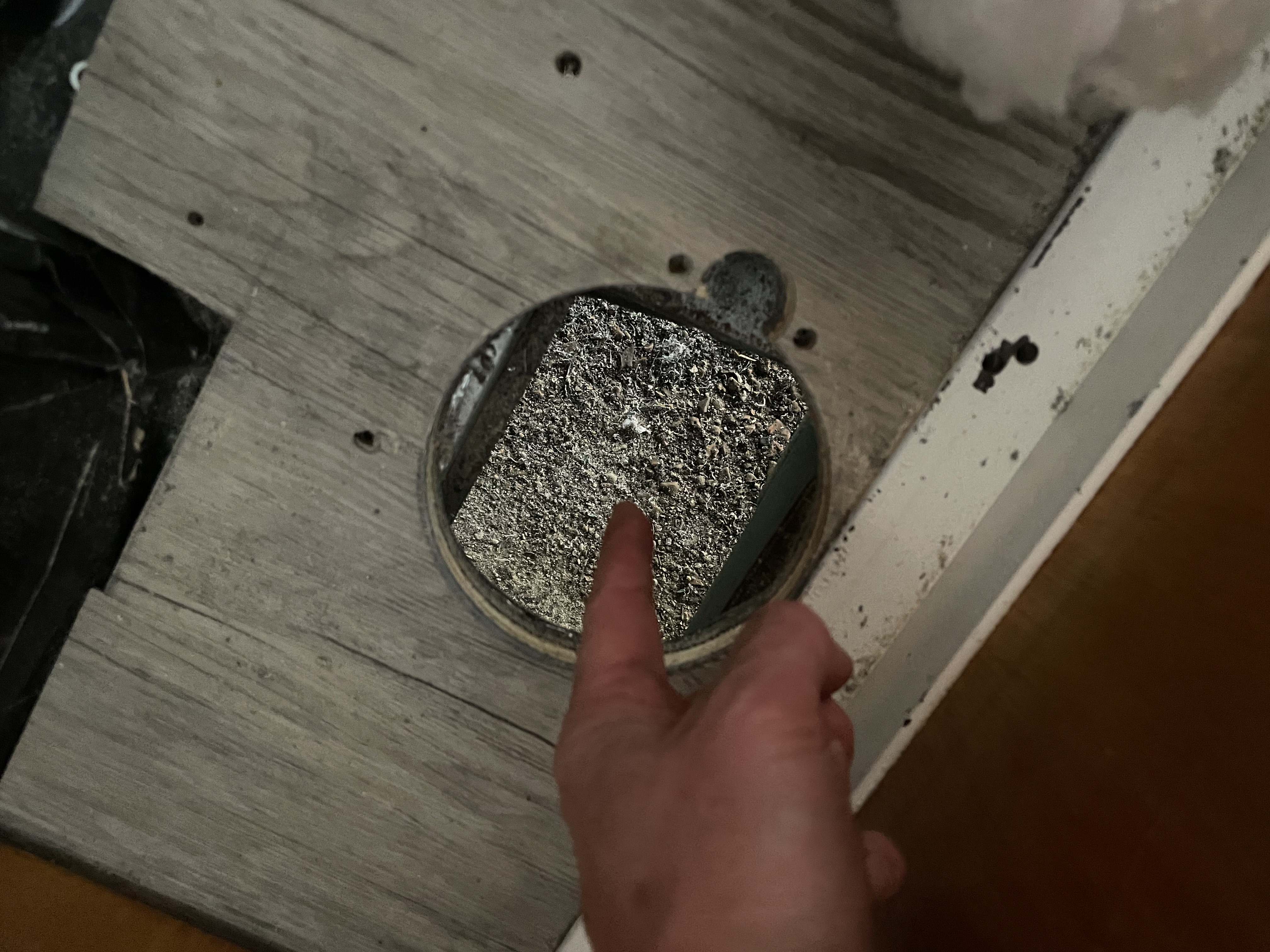

Deep breath... hole cut in the floor for the exhaust.
Step 3: Mount the Heater
With the holes cut, I bolted the mounting plate to the floor and secured the heater unit to it. Make sure everything is sealed properly around the floor penetrations — you don't want road water, fumes, or anything else getting in.
The heater unit mounted in place under the rock and roll bed.
Step 4: Run the Exhaust and Intake
The exhaust pipe runs down through the floor and exits underneath the van. The silencer sits underneath too. The air intake runs through its own hole and I used the longer pipe to route it well away from the exhaust outlet.

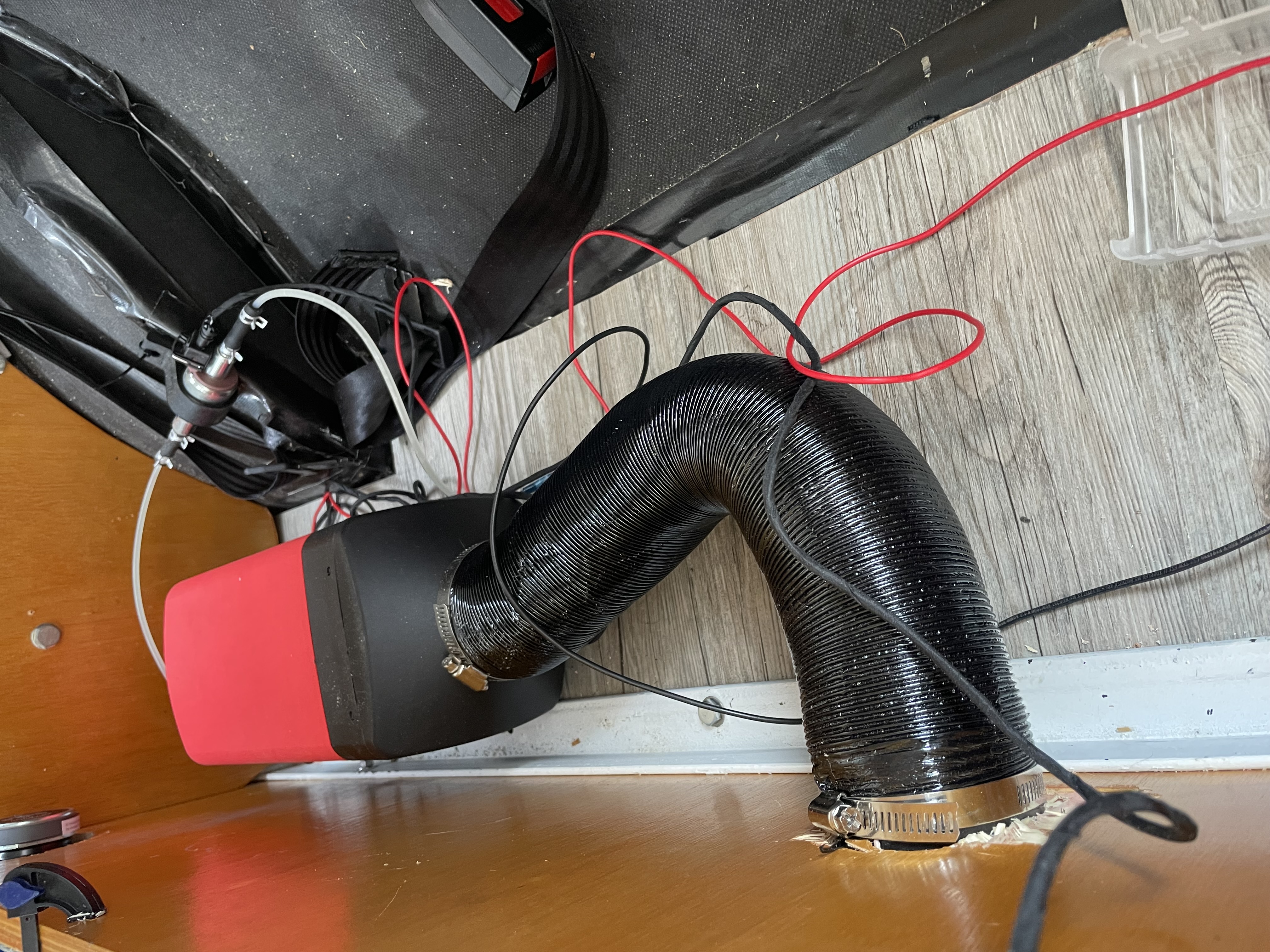

Getting there — exhaust and intake routed underneath.
Step 5: Install the Fuel Tank and Pump
I mounted the slim fuel tank behind the driver's seat and ran the fuel line back to the heater. The fuel pump sits inline on this fuel line.
A word about the fuel pump: It ticks. Quite loudly, in fact. It's a rhythmic ticking sound as it pulses diesel to the heater, and when you're trying to sleep in a quiet van, it can be really irritating.

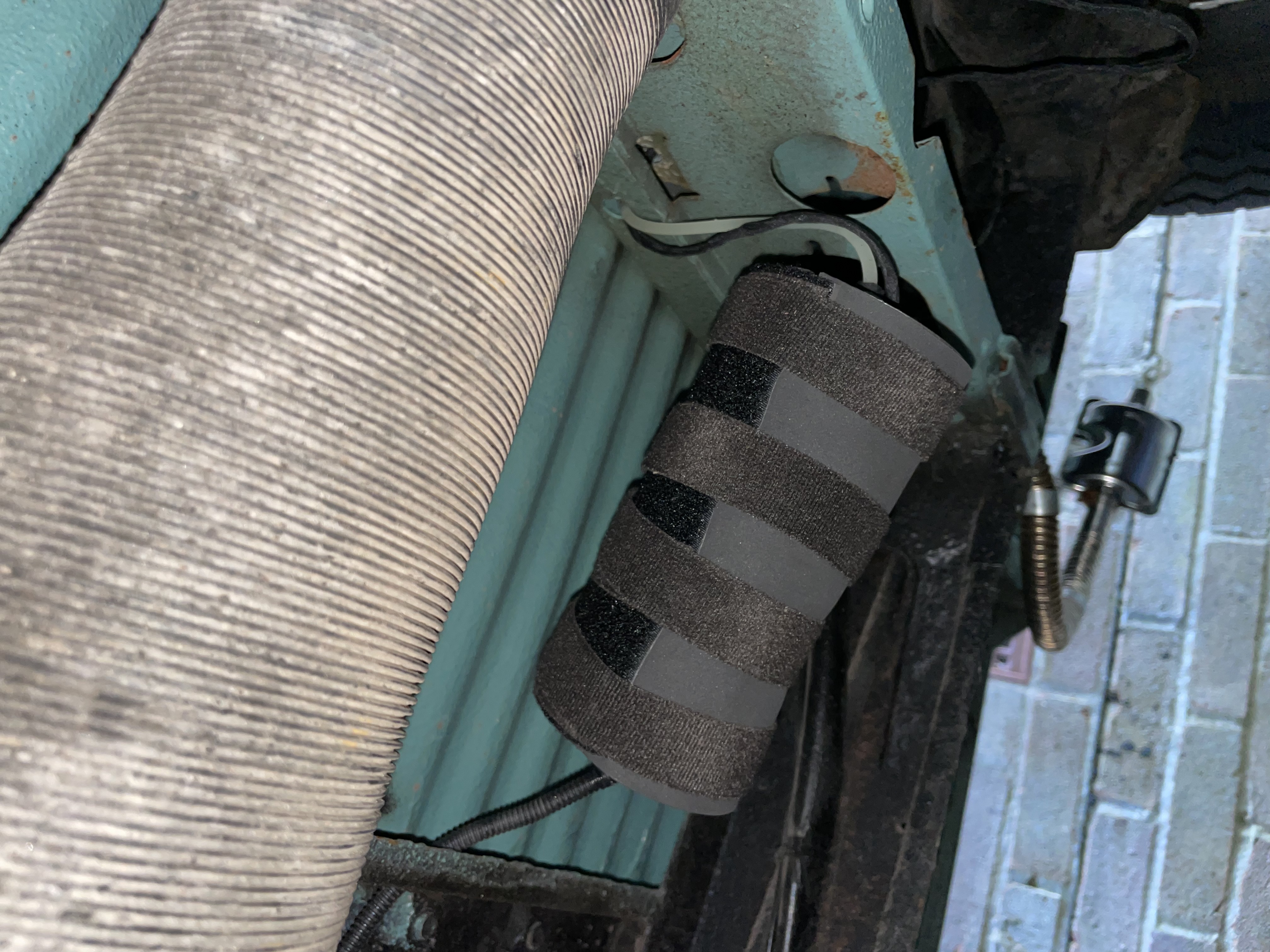

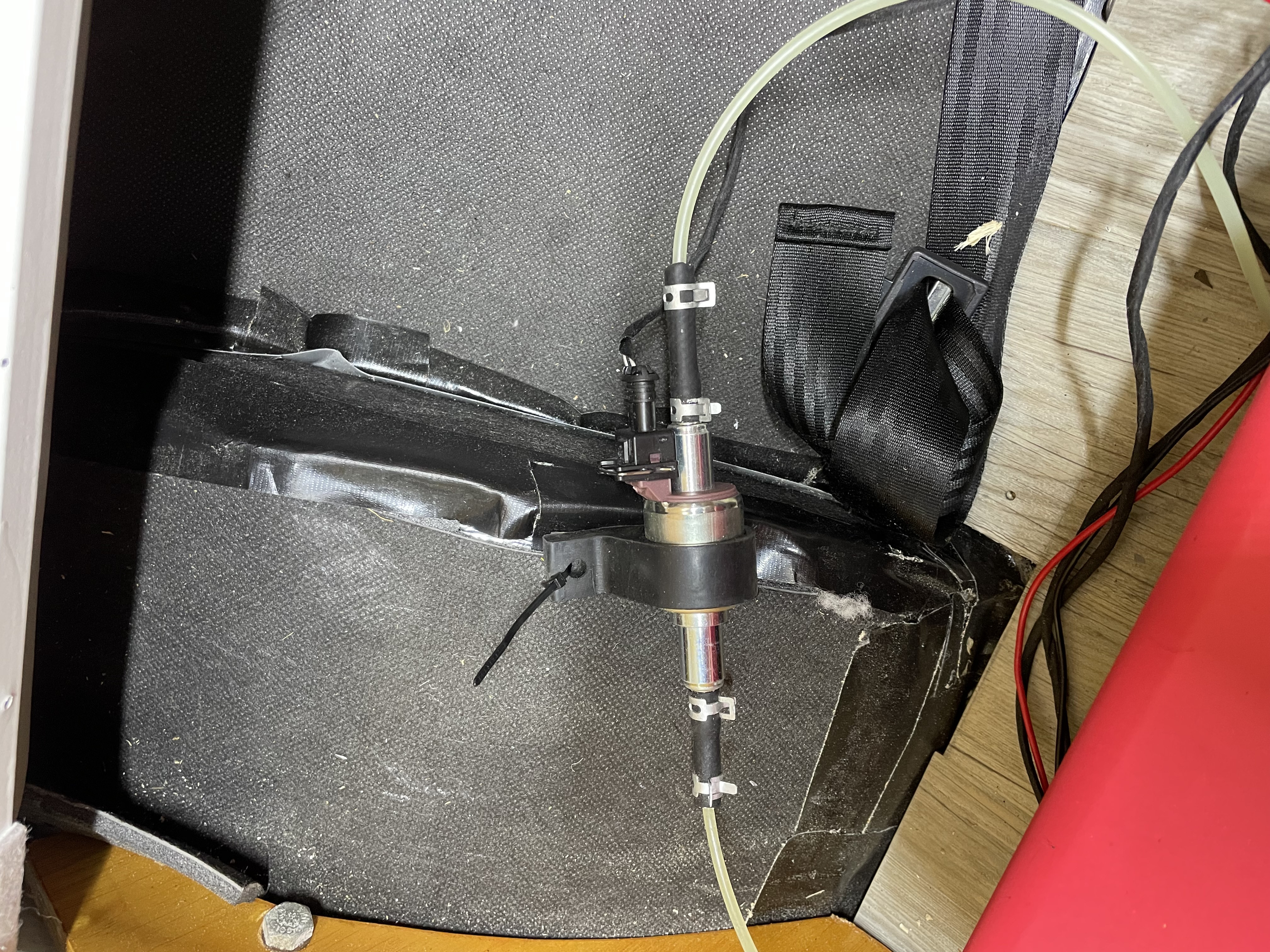

The fuel pump — functional but noisy.
I ended up having a custom insulated cover made to go over the pump, which dampened the noise significantly. It's one of those things you don't think about until the heater's running at 2am and all you can hear is tick... tick... tick...

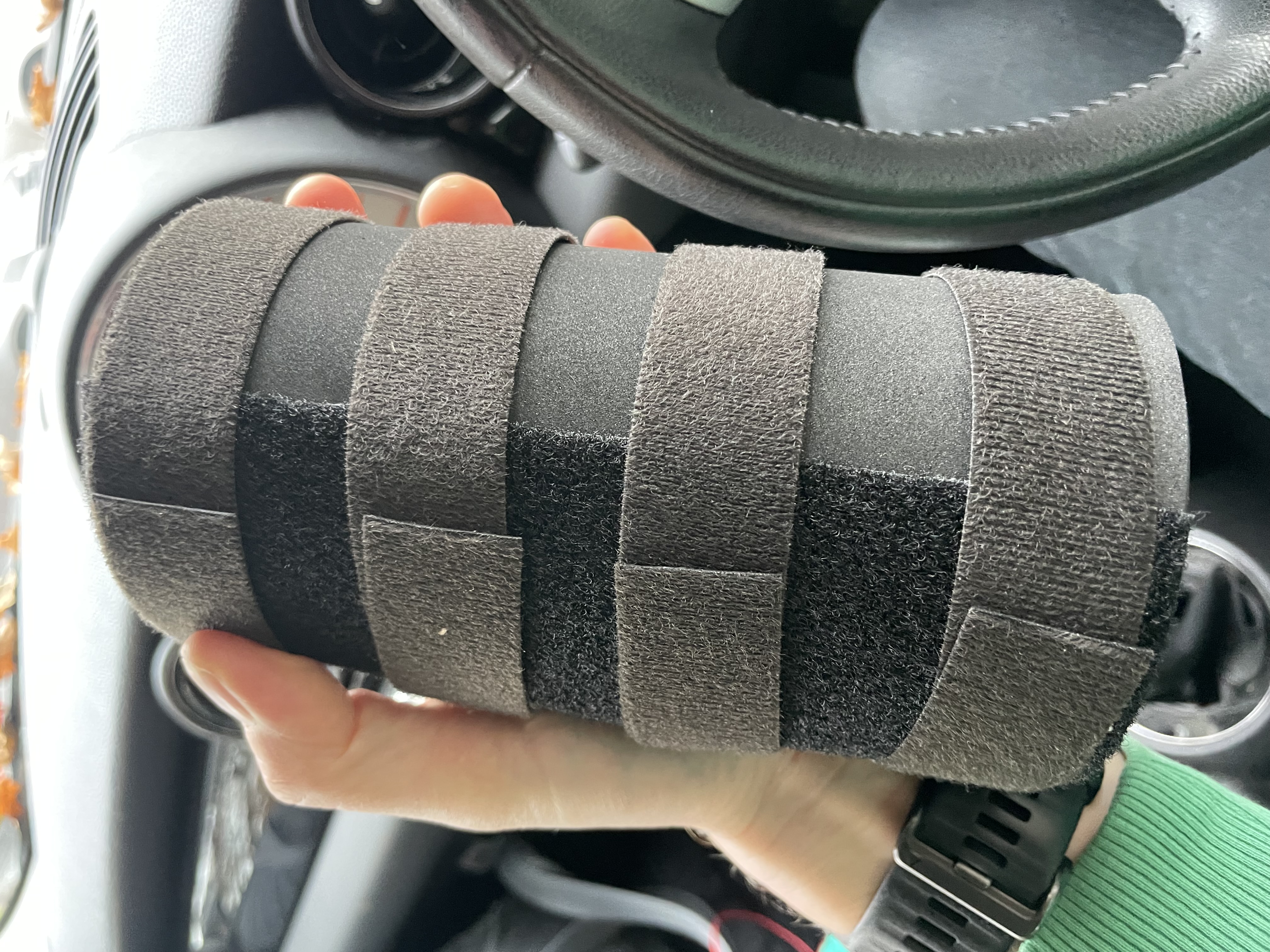

Custom-made insulated cover for the fuel pump — game changer for noise.
Step 6: Route the Hot Air Ducting
The hot air outlet duct runs from the heater up into the van's living space. I positioned it so the warm air flows up and across the main area.

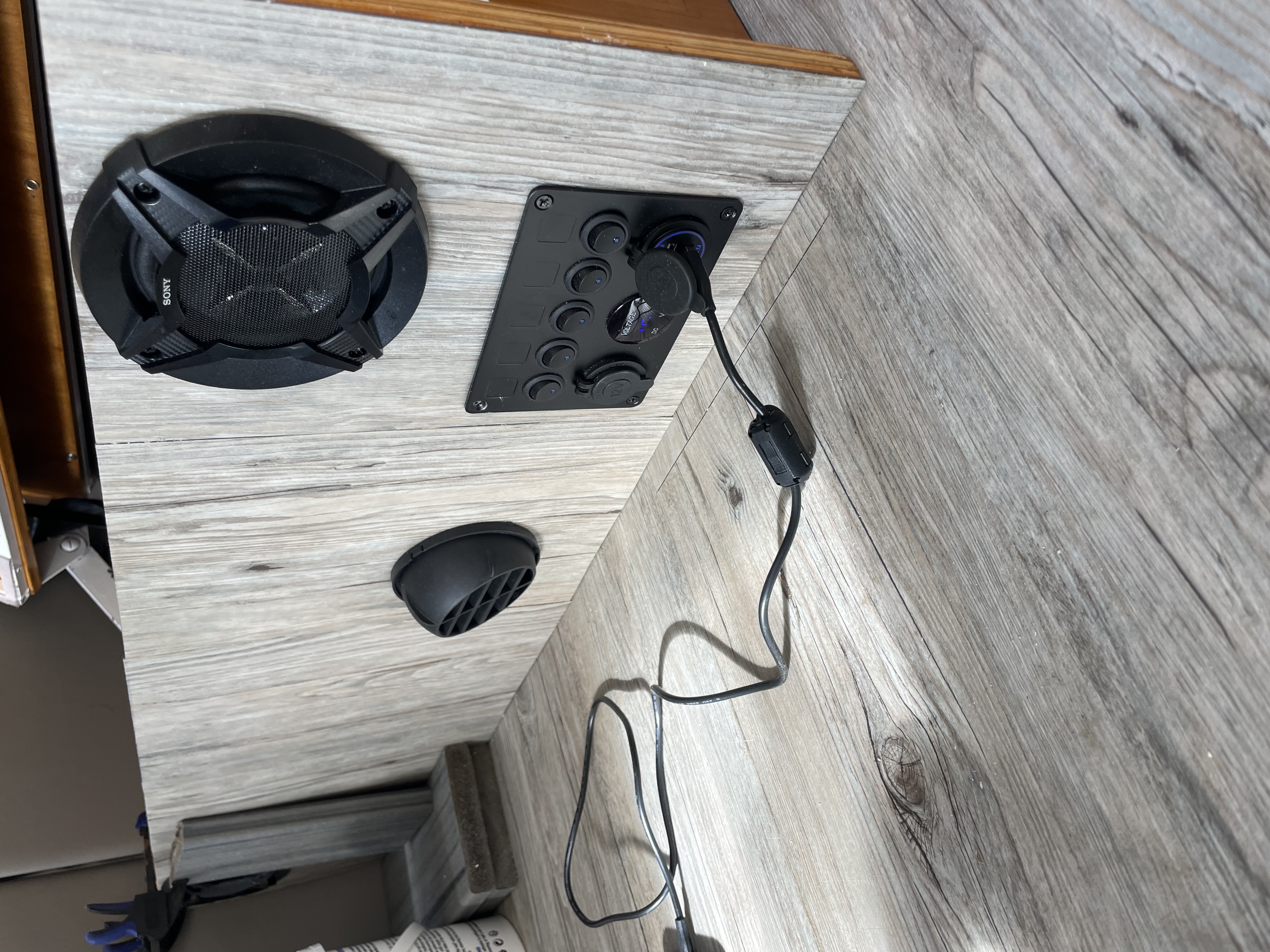

Warm air duct venting into the living space.
Step 7: Wire Up the Controller
The wiring is straightforward — power from the leisure battery, fuel pump connection, and the controller/thermostat. My kit came with both a simple switch panel and a digital LCD controller, which lets you set exact temperatures and timers.

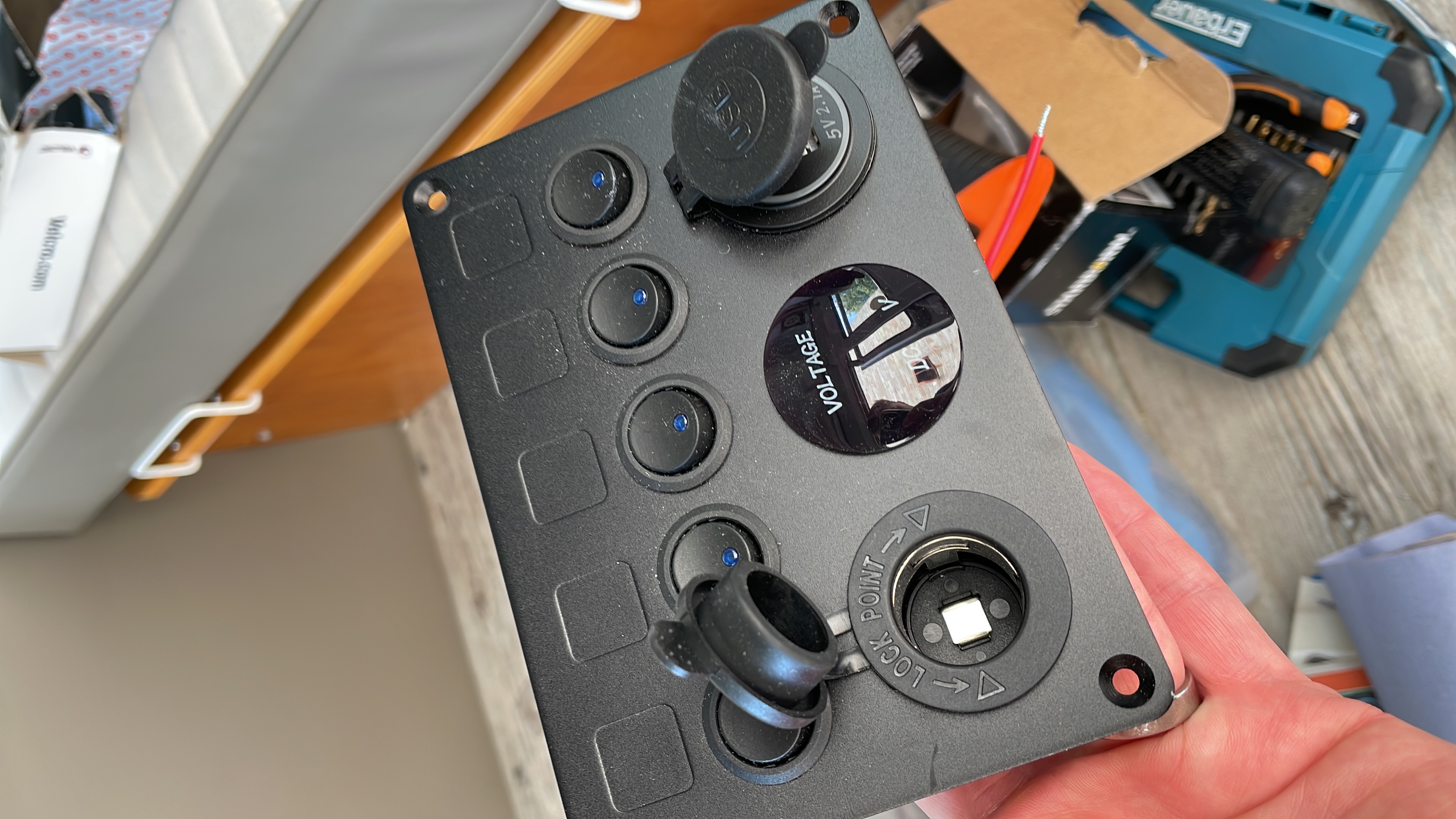

The switch panel.

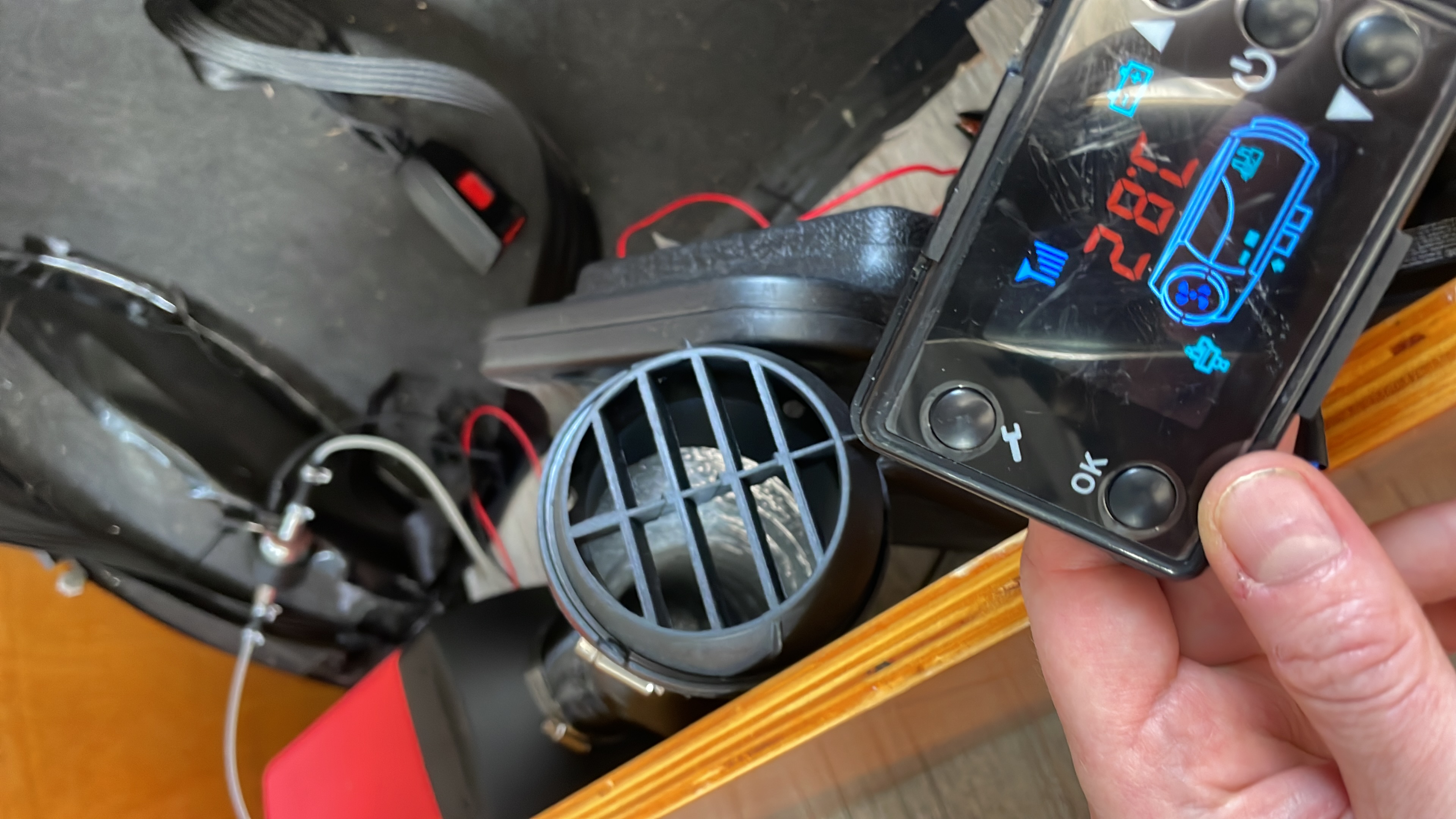

Digital LCD controller — set your temperature and timer.
Step 8: Test It
Once everything was connected, I filled the fuel tank, turned it on, and waited. The first start takes a little while as diesel works its way through the fuel line. Then... glorious heat. In February. In a T2. Magic.
Heater installed and running — glorious warmth!
Jenny with heating sorted — ready for cold weather camping.
⚠️ Carbon Monoxide — This Is Not Optional
I cannot stress this enough. I run TWO carbon monoxide alarms in Jenny at ALL times. Not one. Two. And I keep a constant supply of fresh batteries for them.
A diesel heater burns fuel. The combustion chamber is sealed and the exhaust goes outside, but if anything ever fails — a cracked heat exchanger, a loose exhaust connection — carbon monoxide could enter the van. CO is odourless and colourless. You won't know it's there until it's too late.
Two alarms. Fresh batteries. Every single trip. No exceptions.
This is genuinely a life-or-death safety measure. Please, if you take nothing else from this blog post, take this: fit carbon monoxide alarms and check them regularly.
What I'd Do Differently
- Consider heater size carefully. The 5KW works, but bigger isn't always better in a small van. Think about your actual heating needs before ordering.
- Budget for pump insulation from the start. That ticking noise is real. Sort it before your first overnight trip.
- Buy the longer air intake pipe straight away. Maximum separation between exhaust and intake. Non-negotiable.
- Take more time measuring. I was careful, but I'd be even more careful next time. Those holes in the floor are permanent.
The Kit I Used
Everything I bought for the install, with what I thought of each one.
The Essentials
🔥 Diesel Heater Unit
Chinese Diesel Heater Kit (5KW) →
These are such good value. I've had mine in for 2+ years now and not had an issue with it. Complete kits come with fuel pump, mounting plate, and control system.
🚨 MUST HAVE — Carbon Monoxide Detectors
Digital CO Detectors (Pack of 2) →
I bought two of these – perhaps over cautious – but for £15 or so I wasn't taking any risks. Non-negotiable safety equipment.
🎛️ 12V Power Panel (for Control)
12V Panel with USB & Switches →
These are great – 4 switches, 12V plugs and 2 USBs too. Looks professional and gives you clean control of the heating circuit.
Installation Tools & Supporting Gear
🔧 Hole Saw (60mm)
For £6 it's worth getting a new one of these to cut the hole to the exact size of the turret plate. Don't try to bodge it with a jigsaw.
🧊 Diesel Heater Turret Plate 60mm
It's scary cutting big holes in your newly welded floor, but this makes a nice clean job of it. Essential for a professional finish.
🔗 Cable Ties (Bulk Pack)
You can never have enough of these to keep wiring tidy in the van!
🪛 Extra Air Intake Ducting
I wanted to make sure the air intake and exhaust were as far apart as possible – so bought extra ducting. Maximum separation reduces CO risk.
🔐 Jubilee Clip Set
Just like cable ties – you never regret having more of these in stock for securing pipes and ducting.
Diesel Heater FAQs
Is a Chinese diesel heater safe in a campervan?
The combustion chamber is sealed and the exhaust goes outside, but if anything fails, such as a cracked heat exchanger or a loose exhaust connection, carbon monoxide could get into the van. I run two carbon monoxide alarms in Jenny at all times, with fresh batteries every trip. I'm not a qualified professional: if in doubt, have a professional fit it.
Where should you fit a diesel heater in a VW T2?
I put the heater under the rock and roll bed, where there's decent space and the hot air vents up into the living area. The diesel tank is a slim upright one tucked in behind the driver's seat.
Are diesel heaters noisy?
The fuel pump is the noisy part. It ticks loudly as it pulses diesel to the heater, which is irritating when you're trying to sleep. A custom insulated cover over the pump made a big difference, so budget for one from the start.
What size diesel heater do you need for a campervan?
I fitted a 5kW heater. It works, but bigger isn't always better in a small van, so think about your actual heating needs before you order.
How do you stop exhaust fumes getting into the air intake?
Keep the exhaust outlet and the air intake as far apart as possible. I bought a longer intake pipe separately so I could route it well away from the exhaust. It's only a few pounds extra and worth it.
What powers a diesel heater?
It burns diesel from its own small tank, and the fan, fuel pump and controller run off the leisure battery. My leisure battery setup guide covers how mine is wired.
Tools and Materials Checklist
- Diesel heater kit — Chinese Diesel Heater
- Longer air intake pipe (buy separately)
- Slim upright diesel fuel tank
- Hole saw (correct diameter for your exhaust and intake pipes)
- Drill
- Spanners and socket set
- Screwdrivers
- Sealant (high-temperature for exhaust penetrations)
- Hose clamps (extras — you always need more)
- Cable ties
- Wire crimps and connectors
- Leisure battery (if you don't already have one)
- TWO carbon monoxide alarms + spare batteries
- Insulated pump cover (or materials to make one)
- Fire extinguisher (you should have one in your van anyway)
⚠️ Final Disclaimer
This blog is a personal account of my own installation. I am not a qualified professional. Do your own research, consult professionals, and never compromise on safety. If in doubt, pay someone who knows what they're doing. Your life is worth more than saving a few hundred quid.
Happy camping — and stay warm!
— Mike & Jenny
